Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	1MB DRAM
Video Types Supported	Monochrome, CGA, EGA, VGA, SVGA
Highest Resolution Supported	1024 x 768
Data Bus	16-bit ISA

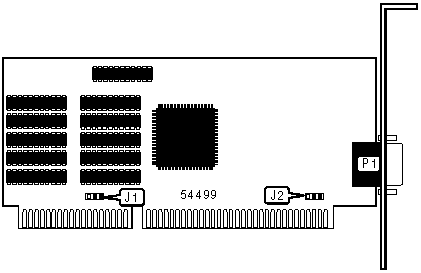

CONNECTIONS
Function	Label
15-pin analog video port	P1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J1	Unidentified
»	IRQ2 disabled	J2	Pins 2 & 3 closed
	IRQ2 enabled	J2	Pins 1 & 2 closed

VIDEO MEMORY CONFIGURATION (DRAM)

Note: Video Memory configuration is unidentified.
