Card Type	TV Card
Video Chip Set	NEC, Sony, Yamaha
Highest Resolution Supported	800 x 600
Maximum Video Memory	640KB RAM (Factory installed)
Data Bus	8-bit ISA
Video Types Supported	XVGA
Video Format Supported	NTSC, PAL

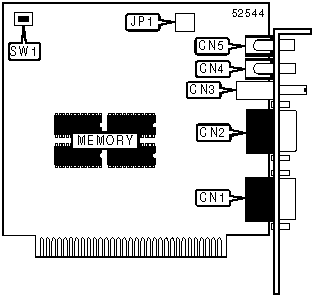

CONNECTIONS
Function	Label	Function	Label
VGA in, Audio/Video Out	CN1	MIC in	CN5
VGA out	CN2	Brightness control	SW1
Volume Control	CN3	Horizontal noise adjustment	JP1
Stereo in	CN4
