Category	Video
Video Types Supported	Monochrome
Video Processor	Unidentified
Highest Resolution Supported	720 x 348
Data Bus Type	8 bit ISA
Memory Type	DRAM
Maximum Onboard Memory	64KB

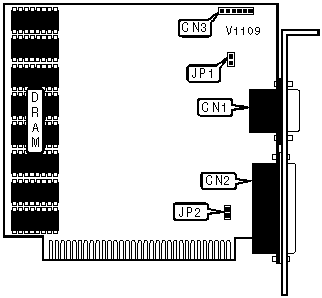

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	Light pen connection	CN3
Parallel port	CN2

BIOS SELECT
BIOS	JP1
UM2301	Open
27128	Closed

PARALLEL PORT
Setting	JP2
Enabled	Closed
Disabled	Open
