Category

Video

Video Types Supported

CGA/Monochrome

Video Processor

Unidentified

Highest Resolution Supported

720 x 348

Data Bus Type

8 bit ISA

Memory Type

None

Maximum Onboard Memory

N/A

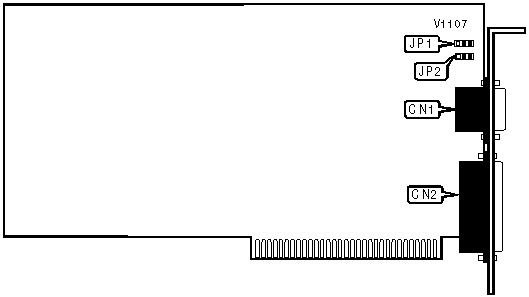

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

Light pen

Unidentified

Parallel port

CN2

DISPLAY

Mode

JP1

Color

Pins 1 & 2 closed

Mono

Pins 2 & 3 closed

PARALLEL PORT

Setting

JP2

Enabled

Pins 1 & 2 closed

Disabled

Pins 2 & 3 closed
