UNIDENTIFIED
XP-6672/XP-6680
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|

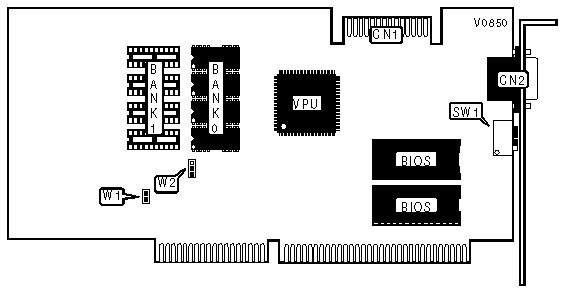

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VESA Feature connector |
CN1 |
15-pin analog video port |
CN2 |
|
BIOS AUTO-SENSE FEATURE | ||
|
Setting |
W1 | |
| » |
AutoSense enabled |
Closed |
|
AutoSense disabled (16-bit BIOS selected) |
Open | |
|
CLOCK INPUT | ||
|
Setting |
W2 | |
| » |
On-board clock |
Pins 1 & 2 closed |
|
Clock input from feature connector |
Pins 2 & 3 closed | |
|
MONITOR TYPE | ||
|
Setting |
SW1/1 | |
| » |
PS/2 type |
Off |
|
Multi-frequency type |
On | |
|
VGA MODES | ||
|
Setting |
SW1/2 | |
| » |
Color/monochrome available on any monitor (PS/2 type) |
Off |
|
Color on color monitors/monochrome on monochrome monitors |
On | |
|
8/16-BIT BUS SELECT | ||
|
Setting |
SW1/4 | |
| » |
Autosense enabled |
On |
|
Force 8-bit path |
Off | |
|
FACTORY CONFIGURED SETTINGS | |
|
Switch |
Setting |
|
SW1/3 |
Off |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 | |
| » |
256KB |
(4) 64K x 8 |
None |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 | |
