UNIDENTIFIED
TGUI 9400CXI-VLB (VERSION 1)
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Trident Microsystems, Inc. |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
VESA local-bus |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2MB |
|

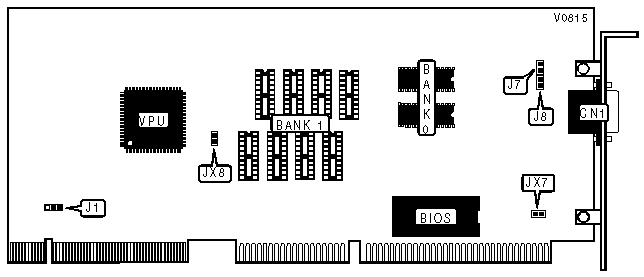

CONNECTIONS |
|
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
VL-BUS TIMING |
||
|
Setting |
J1 |
|
|
» |
Standard |
Pins 2 & 3 closed |
|
Alternate |
Pins 1 & 2 closed |
|
|
VERTICAL SCAN RATE |
||
|
Setting |
J7 |
|
|
» |
Monitor scan rate < 48.7KHz |
Closed |
|
Monitor scan rate ³ 48.7KHz |
Open |
|
|
DRAM SPEED |
||
|
DRAM Speed |
J8 |
|
|
» |
80ns |
Closed |
|
60ns or 70ns |
Open |
|
|
VL-BUS SPEED |
|
|
Setting |
JX7 |
|
CPU speed £ 33MHz |
Open |
|
CPU speed > 33MHz |
Closed |
|
FACTORY CONFIGURED JUMPERS |
|
|
Jumper |
Setting |
|
JX8 |
Closed |
|
DRAM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
|
|
» |
1MB |
(2) 512K x 8 |
None |
|
2MB |
(2) 512K x 8 |
(8) 256K x 4 |
|
|
Note: Some versions of the TGUI 9400CXI-VLB have (8) 256K x 4 DRAMs installed with no provision for memory upgrade. |
|||
