Category

Video

Video Types Supported

XVGA

Video Processor

Trident Microsystems, Inc.

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1MB

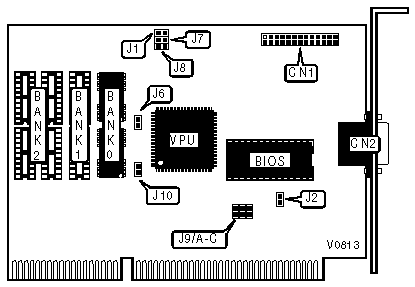

CONNECTIONS

Purpose

Location

Purpose

Location

VESA feature connector

CN1

15-pin analog video port

CN2

FIRST STAGE ZERO WAIT STATE

Setting

J2

»

Enabled

Closed

Disabled

Open

SECOND STAGE ZERO WAIT STATE

Setting

J1

»

Enabled

Closed

Disabled

Open

8/16-BIT BUS SELECT

Setting

J6

J9

J10

»

16-bit slot

Open

Jumpers A - C open

Closed

8-bit slot

Closed

Jumpers A - C closed

Open

SCAN RATE

Setting

J7

»

< 48.7KHz

Closed

³ 48.7KHz

Open

Note: A scan rate of 48.7KHz requires at least 512KB of DRAM.

8/16-BIT BIOS DETECTION

Setting

J8

»

Autodetect enabled

Open

BIOS setting

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

»

256KB

(2) 256K x 4

None

None

512KB

(2) 256K x 4

(2) 256K x 4

None

1MB

(2) 256K x 4

(2) 256K x 4

(4) 256K x 4
