Category	Video
Video Types Supported	VGA
Video Processor	Unidentified
Highest Resolution Supported	Unidentified
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

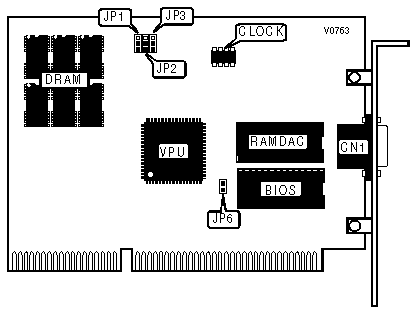

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

INTERRUPT IRQ2 SELECT
Setting		JP6
»	Disabled	Open
	Enabled	Closed

CLOCK SELECT
Setting		JP3
»	Super VGA	Open
	Extended video	Closed

CLOCK CHIP SELECT
UMC	AVASEM	STARTEC	JP1	JP2
50Mhz	70Mhz	50Mhz	Pins 1 & 2 closed	Pins 1 & 2 closed
40Mhz	65Mhz	44.9Mhz	Pins 1 & 2 closed	Pins 2 & 3 closed
36Mhz	60Mhz	40Mhz	Pins 2 & 3 closed	Pins 1 & 2 closed
32Mhz	50Mhz	32Mhz	Pins 2 & 3 closed	Pins 2 & 3 closed
