Category	Video
Video Types Supported	VGA
Video Processor	Unidentified
Highest Resolution Supported	Unidentified
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1024KB

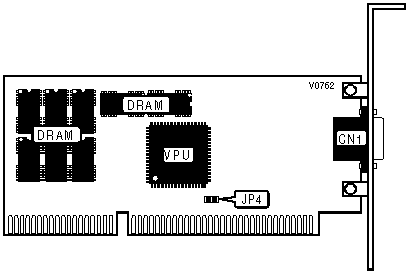

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

INTERRUPT IRQ2 SELECT
Setting		JP4
»	Disabled	Open
	Enabled	Closed
