UNIDENTIFIED
16 BIT VGA CARD
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
512KB DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
800 x 600 |
|
Data Bus |
16-bit ISA |
|

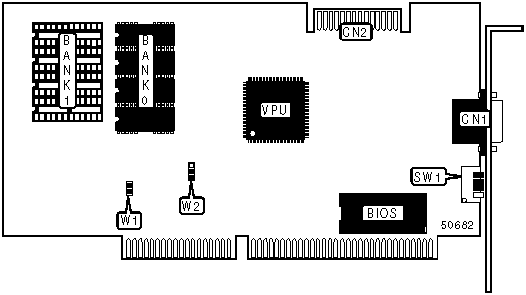

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
VESA feature connector |
CN2 |
|
8/16-BIT BUS SELECTION |
||
|
Setting |
W1 |
|
|
» |
AutoSense enabled |
Closed |
|
|
Force 16-bit bus selection |
Open |
|
FEATURE CONNECTOR |
||
|
Setting |
W2 |
|
|
» |
Feature connector disabled |
Pins 1 & 2 closed |
|
|
Feature connector enabled |
Pins 2 & 3 closed |
|
Note: Enabling the feature connector disables 800 x 600 graphics and 132 column text mode. |
||
|
MONITOR TYPE |
||
|
Setting |
SW1/1 |
|
|
» |
Standard PS/2 type |
Off |
|
|
Multi-frequency type |
On |
|
VGA MODE SWITCHING |
||
|
Setting |
SW1/2 |
|
|
» |
PS/2 style |
On |
|
|
PC/AT style |
Off |
|
8-BIT BUS SELECTION |
||
|
Setting |
SW1/4 |
|
|
» |
AutoSense enabled |
On |
|
|
Force 8-bit bus selection |
Off |
|
DRAM CONFIGURATION |
|||
|
Size |
Bank 0 |
Bank 1 |
|
|
» |
256KB |
(4) 64KB x 8 |
None |
|
|
512KB |
(4) 64KB x 8 |
(4) 64KB x 8 |
