UNIDENTIFIED
ACVGA OPERATIONS
|
Category |
Video |
|
Video Types Supported |
VGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
800 x 600 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
256KB |
|

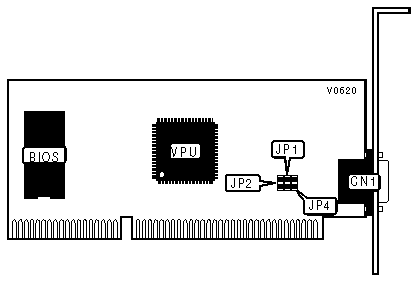

CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
IRQ2 ENABLE/DISABLE | |
|
Setting |
JP1 |
|
» Disabled |
Open |
|
Enabled |
Closed |
|
ZERO WAIT STATE | |
|
Setting |
JP2 |
|
» Disabled |
Open |
|
Enabled |
Closed |
|
BIOS ZERO WAIT STATE | |
|
Setting |
JP4 |
|
» Disabled |
Open |
|
Enabled |
Closed |
