Category	Video
Video Types Supported	CGA/Monochrome
Video Processor	Unidentified
Highest Resolution Supported	640 X 200
Data Bus Type	8 Bit ISA
Memory Type	DRAM
Maximum Onboard Memory	64KB (Exact location of memory is unidentified)

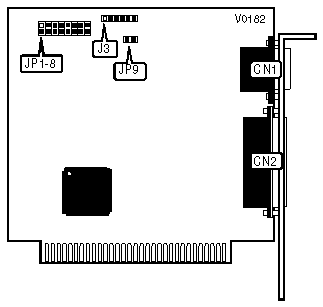

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	Light pen connector	J3
Parallel port	CN2

PARALLEL PORT CONFIGURATION
LPT	JP1	JP2
1	Open	Closed
2	Closed	Open
3	Open	Open
Disabled	Closed	Closed

EMULATION TYPE SELECTION
Type	JP3
Hercules	Open
CGA	Closed

AUTO-SWITCHING MODE CONFIGURATION
Mode	JP4
Enabled	Open
Disabled	Closed

AUTO-SCREEN BLANKING CONFIGURATION
Setting	JP6
Enabled	Open
Disabled	Closed

COLOR EMULATION CONFIGURATION
Setting	JP7
Enabled	Open
Disabled	Closed

CGA FONT SELECTION
Font	JP9
7 x 7	Closed
5 x 7	Open

PARALLEL PORT CONFIGURATION
LPT	JP1	JP2
1	Open	Closed
2	Closed	Open
3	Open	Open

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP5	Closed
JP8	Closed
