Category	Video
Video Types Supported	CGA/Monochrome
Video Processor	Toshiba
Highest Resolution Supported	640 x 200
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	N/A

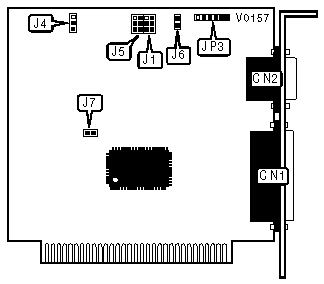

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	Light pen port	JP3
15-pin analog video port	CN2

MONITOR TYPE SELECTION
Type		J1	J5	J6
»	Color	Pins 1 & 2, 5 & 6 closed	Pins 1 & 2, 5 & 6 closed	Open
	Composite Color	Pins 1 & 2, 4 & 5 closed	Pins 2 & 3, 5 & 6 closed	Open
	Composite Monochrome	Pins 2 & 3, 5 & 6 closed	Pins 2 & 3, 4 & 5 closed	Closed

OVERSTRIKE CONFIGURATION
Setting		J7
»	Overstrike	Closed
	Single Strike	Open

PARALLEL PORT CONFIGURATION
Setting		J4
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed
