Category	Video
Video Types Supported	XVGA
Video Processor	TVGA 8800BR
Highest Resolution Supported	1024 x768
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

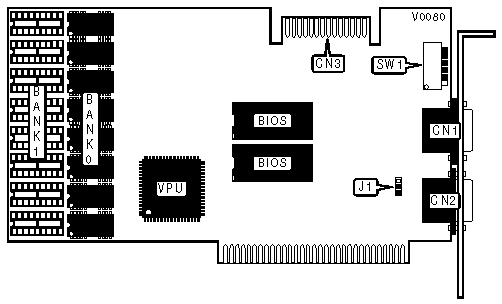

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN3
9-pin TTL video port	CN2

MONITOR TYPE SELECTION
Type		J1	SW1/1	SW1/2	SW1/3	SW1/4
»	Analog monitor	Pins 2 & 3 closed	On	On	On	On
	TTL monitor	Pins 1 & 2 closed	Off	Off	Off	Off

ADDRESS DECODE SELECTION
Setting		SW1/5
»	Fast	On
	Slow	Off

BUS DATA PATH SELECTION
Bus		SW1/6
»	16-bit	Off
	8-bit	On
