Card Type	Video card
Video Chip Set	S3
Maximum Video Memory	2MB
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

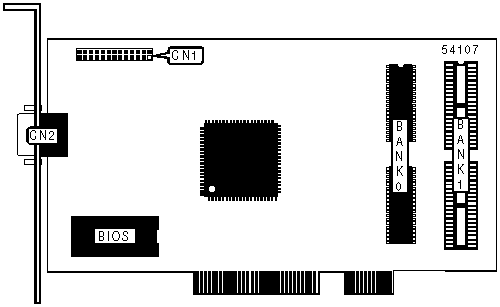

CONNECTIONS
Function	Label	Function	Label
Feature connector	CN1	15-pin analog video port	CN2

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 256KB x 16	None
2MB	(2) 256KB x 16	(2) 256KB x 16
