Card Type	Video card
Video Chip Set	S3, Inc.
Maximum Video Memory	4MB EDO DRAM
Video Types Supported	XVGA
Highest Resolution Supported	1024 x 768
Data Bus	32-bit PCI

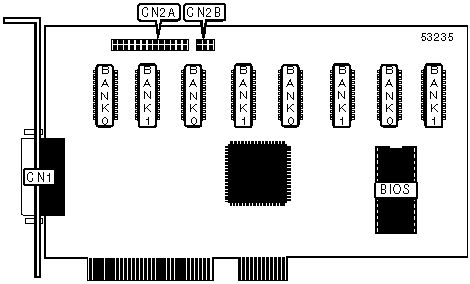

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	LPB extension to vesa connector	CN2B
Vesa feature connector	CN2A

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(4) 512KB	None
4MB	(4) 512KB	(4) 512KB
