Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	2MB DRAM
Video Types Supported	XVGA
Highest Resolution Supported	1024 x 768
Data Bus	32-bit PCI

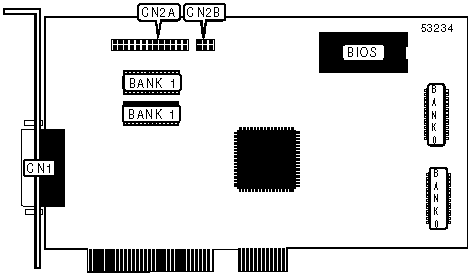

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	LPB extension to Vesa connector	CN2B
Vesa feature connector	CN2A

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(2) 512KB	None
2MB	(2) 512KB	(2) 512KB
