SIIG, INC.
SUPER VGA MASTER VL (VER.2)
|
Card Type |
Video card |
|
Chip Set |
Cirrus Logic, Inc. |
|
Maximum Onboard Memory |
2MB DRAM |
|
Data Bus |
32-bit VESA Local Bus |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1280 x 1024 |
|

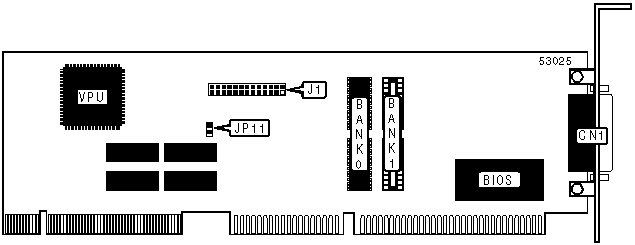

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Feature connector |
J1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
IRQ9 disabled |
JP11 |
Open |
|
IRQ9 enabled |
JP11 |
Closed | |
|
VIDEO MEMORY CONFIGURATION (DRAM) | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 512KB x 8 |
None |
|
2MB |
(2) 512KB x 8 |
(2) 512KB x 8 |
