Card Type	Video card
Video Chip Set	SIIG, INC.
Maximum Video Memory	1MB DRAM
Video Types Supported	XVGA
Highest Resolution Supported	Unidentified
Data Bus	16-bit ISA

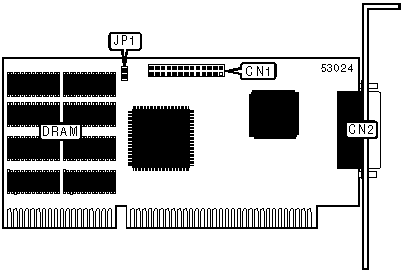

CONNECTIONS
Function	Label	Function	Label
Feature connector	CN1	15-pin analog video connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Interlaced display	JP1	Closed
	Non-interlaced display, scan rate up to 48.7KHz	JP1	Open
