TANDY/RADIO SHACK
DUAL DISPLAY GRAPHICS ADAPTER (250-3045A)
|
Card Type |
Video card |
|
Video Processor |
6845 |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
Monochrome, CGA, Plantronics |
|
Highest Resolution Supported |
720 x 348 |
|

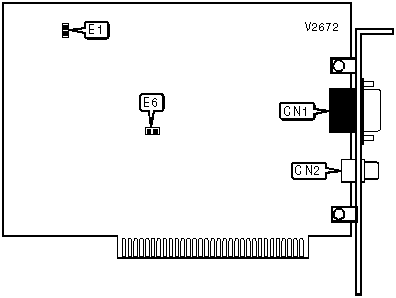

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
9-pin video out connector |
CN1 |
Composite video out connector |
CN2 |
|
VIDEO MODE | ||
|
Setting |
E1 |
E6 |
|
Color mode |
Closed |
Open |
|
Monochrome mode |
Open |
Closed |
