Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	1280 x 1024
Maximum Video Memory	2MB DRAM
Data Bus	32-bit PCI
Video Types Supported	XVGA

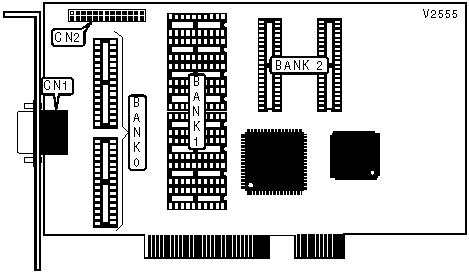

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
1MB	(2) 256KB x 16	None	None
1MB	None	(8) 256KB x 4	None
2MB	(2) 256KB x 16	None	(2) 256KB x 16
2MB	None	(8) 256KB x 4	(2) 256KB x 16
