Category	Video
Video Types Supported	XVGA
Video Processor	IGS
Highest Resolution Supported	1600 x 1200
Data Bus Type	32-bit PCI
Memory Type	DRAM
Maximum Onboard Memory	2MB

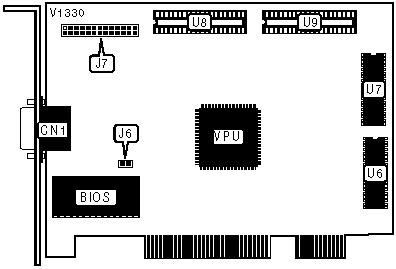

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA feature connector	J7

INTERRUPT CONFIGURATION
IRQ 2/9	J6
Disabled	Open
Enabled	Closed

DRAM CONFIGURATION
Memory	U6 & U7	U8 & U9
1MB	(2) 256K x 16	NONE
2MB	(2) 256K x 16	(2) 256K x 16
