SUNTEK INFORMATION SYSTEMS, INC.
MONOPAK
|
Category |
Video |
|
Video Types Supported |
Monochrome |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
720 x 348 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB |
|

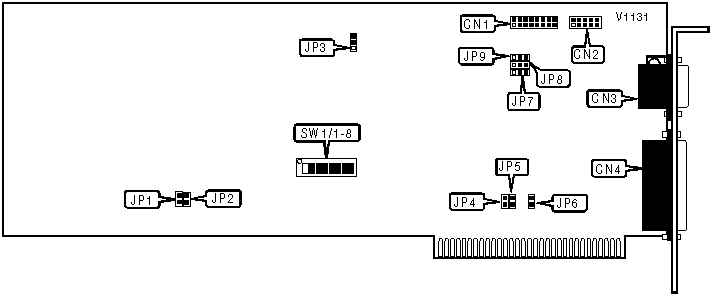

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
Game port |
CN1 |
15-pin analog video port |
CN3 |
|
Serial port |
CN2 |
Parallel port |
CN4 |
|
MONOCHROME GRAPHICS SELECTION |
|
|
Setting |
JP3 |
|
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed |
|
PARALLEL PORT INTERRUPT SELECTION |
|
|
IRQ7 |
JP6 |
|
Enabled |
Closed |
|
Disabled |
Open |
|
SERIAL PORT INTERRUPT SELECTION |
|||
|
IRQ |
JP5 |
JP4 |
|
|
» |
IRQ4 |
Closed |
Open |
|
|
IRQ3 |
Open |
Closed |
|
REALTIME CLOCK/CALENDAR INTERRUPT SELECTION |
||
|
IRQ |
JP2 |
JP1 |
|
IRQ2 |
Closed |
Open |
|
IRQ5 |
Open |
Closed |
|
PARALLEL PORT BASE ADDRESS |
||||
|
Address |
SW1/1 |
SW1/6 |
SW1/7 |
|
|
» |
Port 1(3BCh) |
Not used |
Off |
On |
|
|
Port 2(378h) |
Off |
On |
Off |
|
|
Port 3(278h) |
On |
On |
Off |
|
|
Disabled |
Not used |
Off |
Off |
|
SERIAL PORT BASE ADDRESS |
|||
|
Address |
SW1/2 |
SW1/3 |
|
|
» |
COM1(3F8h) |
Off |
On |
|
|
COM2(2F8h) |
On |
On |
|
|
Disabled |
Not used |
Off |
|
REALTIME CLOCK/CALENDAR SELECTION |
|
|
Setting |
SW1/4 |
|
Enabled |
On |
|
Disabled |
Off |
|
GAME PORT SELECTION |
|
|
Setting |
SW1/5 |
|
Enabled(200h) |
On |
|
Disabled |
Off |
|
CTS SIGNAL SELECTION |
|
|
Setting |
JP7 |
|
Force high |
Pins 1 & 2 closed |
|
Normal operation |
Pins 2 & 3 closed |
|
DTS SIGNAL SELECTION |
|
|
Setting |
JP8 |
|
Force high |
Pins 1 & 2 closed |
|
Normal operation |
Pins 2 & 3 closed |
|
DCD SIGNAL SELECTION |
|
|
Setting |
JP9 |
|
Force high |
Pins 1 & 2 closed |
|
Normal operation |
Pins 2 & 3 closed |
|
FACTORY CONFIGURED SETTINGS |
|
|
Switch |
Setting |
|
SW1/8 |
N/A |
