Category

Video/MPEG

Video Types Supported

XVGA

Video Processor

Unidentified

Highest Resolution Supported

1024 x 768

Data Bus Type

32-bit VESA Local Bus

Memory Type

N/A

Maximum Onboard Memory

N/A

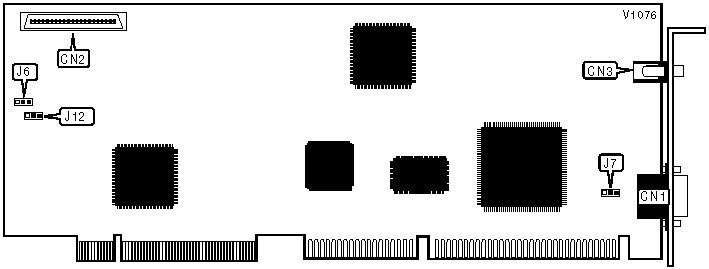

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

Stereo audio line out

CN3

VESA advanced feature connector

CN2

VL-BUS SPEED SELECTION

Speed

J6

»

£ 33MHz

Pins 1 & 2 closed

>33MHz

Pins 2 & 3 closed

VERTICAL SYNC INTERRUPT (IRQ9) CONFIGURATION

Setting

J7

»

Disabled

Pins 1 & 2 closed

Enabled

Pins 2 & 3 closed

VL-BUS WAIT STATE CONFIGURATION

Setting

J12

»

Non-Zero wait-state

Pins 2 & 3 closed

Zero wait-state

Pins 1 & 2 closed
