STB SYSTEMS, INC.
EXPRESS PCI
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Avance Logic |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit PCI |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1MB |
|

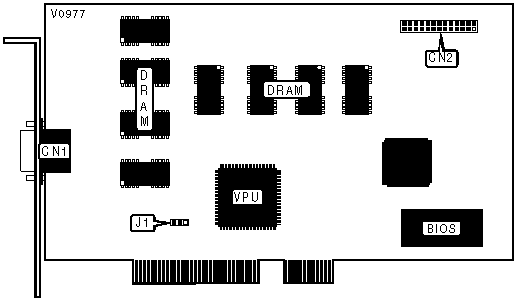

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
INTERRUPT SELECTION |
||
|
IRQ 2 |
J1 |
|
|
» |
Disabled |
Pins 2 & 3 closed |
|
|
Enabled |
Pins 1 & 2 closed |
