STB SYSTEMS, INC.
VELOCITY 64V VL
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 Vision968 |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
VRAM |
|
Maximum Onboard Memory |
2MB (Expandable to 4MB) |
|

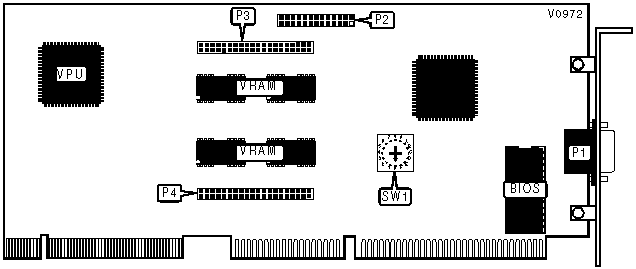

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
P1 |
Expansion memory connector |
P3 |
|
VGA feature connector |
P2 |
Expansion memory connector |
P4 |
|
FACTORY CONFIGURED - DO NOT ALTER |
||
|
Switch |
Position |
|
|
» |
SW1 |
0 |
