Card Type	Video card
Video Chip Set	Prism Imaging Systems
Maximum Video Memory	512KB DRAM
Video Types Supported	Monochrome, CGA, EGA, VGA
Highest Resolution Supported	1024 x 768
Data Bus	8/16-bit ISA

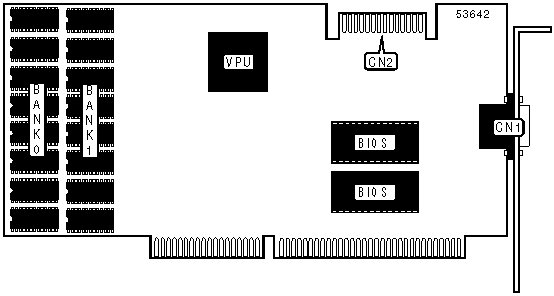

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(8) 32K x 8	None
512KB	(8) 32K x 8	(8) 32K x 8
