Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	1MB VRAM
Video Types Supported	VGA
Highest Resolution Supported	1024 x 768
Data Bus	16-bit ISA

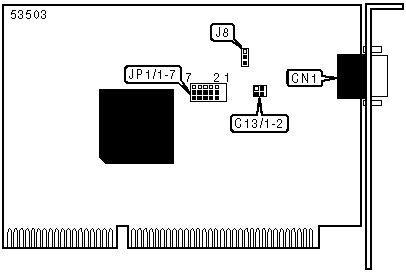

CONNECTIONS
Function	Label
9-pin digital video port	CN1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IRQ 5 enabled	C13/1	Closed
	IRQ 2 enabled (not used)	C13/2	Closed
»	Mouse port disabled	J8	Pins 1 & 2 closed
	Mouse port enabled	J8	Pins 2 & 3 closed

USER CONFIGURABLE SETTINGS (CONTINUED)
Function	JP1/2	JP1/3	JP1/4	JP1/5	JP1/6	JP1/7
Unidentified	Pins 1 & 2	Pins 2 & 3	Pins 1 & 2	Pins 1 & 2	Pins 2 & 3	Pins 2 & 3
Note: Designated pins are closed. JP1/1 has no configurable settings.
