Card Type	Video
Video Chip Set	Cirrus Logic
Maximum Video Memory	2MB DRAM (EDO)
Video Types Supported	XVGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

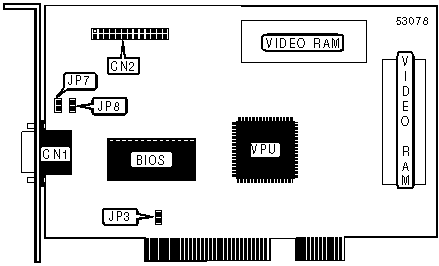

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
INTA enabled	JP3	Closed
INTA disabled	JP3	Open

DDC2B CONFIGURATION
Setting	JP7	JP8
Enabled	Closed	Closed
Disabled	Open	Open

DRAM CONFIGURATION
Exact configuration is unidentified.
