Card Type	Video accelerator
Video Chip Set	Trident
Maximum Video Memory	4MB DRAM (EDO)
Video Types Supported	XVGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

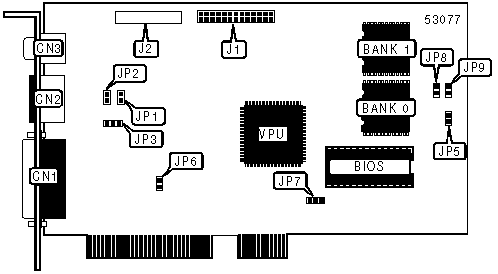

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	J1
S-video out	CN2	Extended feature connector	J2
Composite video out	CN3

USER CONFIGURABLE SETTINGS
Function	Label	Position
4FSC select	JP1	Open
FSC select	JP1	Closed
NTSC encoding enabled	JP2	Open
PAL encoding enabled	JP2	Closed
XFSC from ProVidia9685	JP3	Pins 1 & 2 closed
XFSC from extend-OSC	JP3	Pins 2 & 3 closed
VAFC enabled	JP5	Open
Capture port enabled	JP5	Closed
Normal drive enabled	JP6	Open
Fast drive enabled	JP6	Closed
32K BIOS enabled	JP7	Pins 1 & 2 closed
64K BIOS enabled	JP7	Pins 2 & 3 closed
VGA out enabled	JP8	Open
TV out enabled	JP8	Closed
PAL TV enabled	JP9	Open
NTSC TV enabled	JP9	Closed
Note: Location of pin 1 in unidentified.

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	2MB	None
4MB	2MB	2MB
Note:The size of memory chips is unidentified.
