Card Type	Video card
Video Chip Set	S3, Inc.
Highest Resolution Supported	1600 x 1200
Maximum Video Memory	4MB VRAM
Data Bus	32-bit PCI
Video Types Supported	XVGA

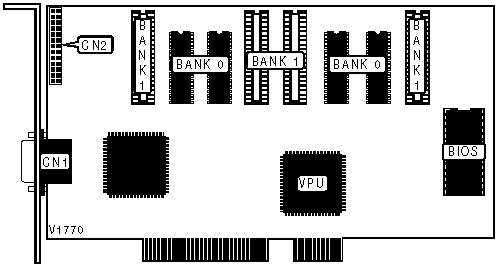

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

VRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(4) 256K x 16	None
4MB	(4) 256K x 16	(4) 256K x 16
