Category	Video
Video Types Supported	XVGA
Video Processor	Trident 9000
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512MB

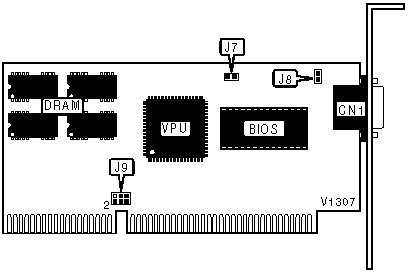

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

VGA SCAN RATE CONFIGURATION
Rate		J7
»	<48.7KHz	Closed
	48.7KHz	Open

BIOS AUTODETECT CONFIGURATION
Setting	J8
Enabled	Open
Disabled	Closed

VGA ADAPTER CONFIGURATION
Setting		J9
»	16-bit	Open
	8-bit	Pins 1 & 2, 3 & 4, 5 & 6 closed
