PIXELWORKS, INC.
RAINBOW/MCA 1024, RAINBOW/MCA 1280
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Pixelworks(location unidentified) |
|
Highest Resolution Supported |
1024x768(Rainbow/MCA 1024), 1280x1024(Rainbow/MCA 1280) |
|
Data Bus Type |
32-bit MCA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
Unidentified |
|

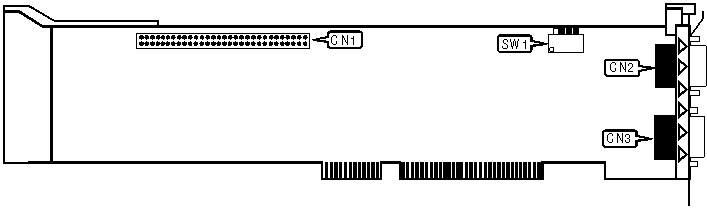

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
60-pin daughterboard connector |
CN1 |
9-pin video passthrough(input) |
CN3 |
|
15-pin analog video port(output) |
CN2 | ||
|
VIDEO SYNCH MODE CONFIGURATION | ||||
|
Mode |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
3-wire |
Off |
Off |
Off |
Off |
|
4-wire |
On |
Off |
Off |
Off |
|
5-wire |
On |
On |
On |
Off |
