Category	Video
Video Types Supported	XVGA
Video Processor	Pixelworks, Inc.(exact location unidentified)
Highest Resolution Supported	1280 x 1024
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	875KB

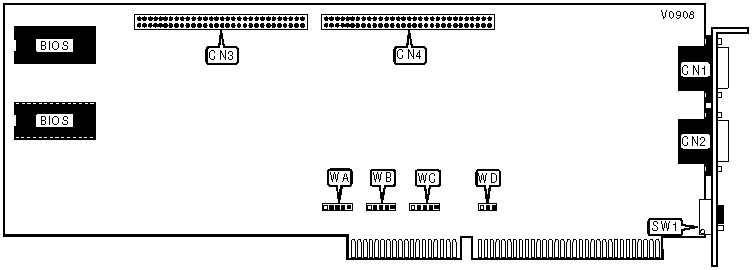

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA pass-through port	CN2
Daughterboard connector	CN3 & CN4

BASE I/O ADDRESS SELECTION
Address		WD
»	330h	Pins 1 & 2 closed
	340	Pins 2 & 3 closed

DMA SELECTION
Channel		WA	WB
»	6	Pins 1 & 2 closed	Pins 1 & 2 closed
	5	Pins 4 & 5 closed	Pins 4 & 5 closed
	7	Pins 2 & 3 closed	Pins 2 & 3 closed

INTERRUPT SELECTION
IRQ		WC
»	10	Pins 1 & 2 closed
	11	Pins 2 & 3 closed
	12	Pins 4 & 5 closed

MONITOR SYNC MODE SELECTION
Mode		SW1/3	SW1/4
»	3	Off	Off
	4	On	Off
	5	On	On

CGA EMULATION CONFIGURATION
Setting	SW1/1
Enabled	On
Disabled	Off

VGA PASS-THROUGH CONFIGURATION
Setting	SW1/2
Enabled	On
Disabled	Off
