Category	Video/hard drive controller
Video Types Supported	XVGA
Video Processor	Cirrus Logic, Inc.
Highest Resolution Supported	1280 x 1024
Data Bus Type	PCI
Memory Type	DRAM
Maximum Onboard Memory	2MB

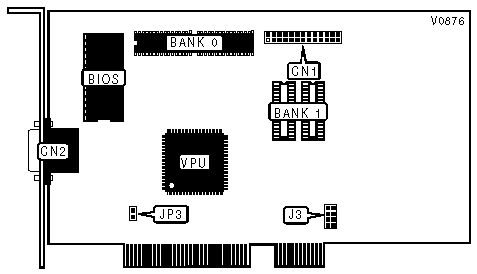

CONNECTIONS
Purpose	Location	Purpose	Location
VESA feature connector	CN1	40-pin IDE (AT) interface connector A	J1
15-pin analog video port	CN2	40-pin IDE (AT) interface connector B	J2
IDE daughter board connector	J3	2-pin connector - drive 0,1 active LED	JP1
		2-pin connector - drive 2,3 active LED	JP15

IRQ9
Setting		JP3
»	Disabled	Open
	Enabled	Closed

DRAM CONFIGURATION
Size		Bank 0	Bank 1
»	1MB	(2) 512K x 8	None
	2MB	(2) 512K x 8	(2) 512K x 8

IDE INTERRUPT SELECT
IRQ		JP2	JP4	JP5	JP6
»	INTA	Open	Open	Open	Closed
	INTB	Open	Open	Closed	Open
	INTC	Open	Closed	Open	Open
	INTD	Closed	Open	Open	Open

IDE PORTS
Setting		JP12
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

MISCELLANEOUS TECHNICAL NOTES

The functions and settings of jumpers JP7-JP11, JP13 and JP14 are not specified in manufacturer’s documentation.
