Card Type	Video capture board
Video Chip Set	Unidentified
Maximum Video Memory	Unidentified
Video Types Supported	VGA
Highest Resolution Supported	Unidentified
Data Bus	32-bit PCI

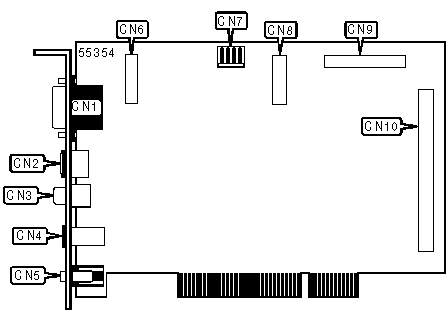

CONNECTIONS
Function	Label	Function	Label
TV cable connector	CN1	VGA to TV module interface connector	CN6
S-video in	CN2	TV tuner input connector	CN7
Composite video in	CN3	VGA to TV module interface connector	CN8
5V DC power	CN4	M-JPEG module interface connector	CN9
Audio in	CN5	M-JPEG module interface connector	CN10
