Card Type	Video card
Video Chip Set	S3
Maximum Video Memory	4MB VRAM
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

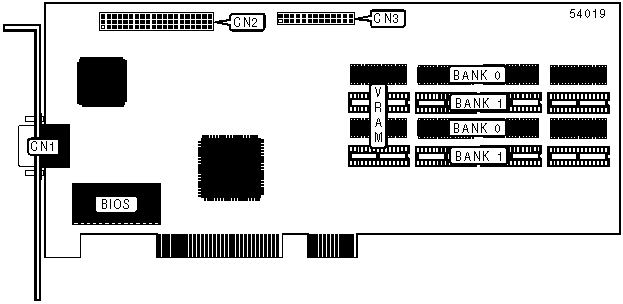

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN3
VCAF Feature connector	CN2

VIDEO MEMORY CONFIGURATION (VRAM)
Size	Bank 0	Bank 1
2MB	(8) 256KB x 8	None
4MB	(8) 256KB x 8	(8)256KB x 8
