OPTIVISION, INC.
MPEG-2 DECODER
|
Category |
Video/Sound |
|
Video Types Supported |
Unidentified |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
704 x 576 |
|
Data Bus Type |
32-bit EISA |
|
Memory Type |
Unidentified |
|
Maximum Onboard Memory |
Unidentified |
|

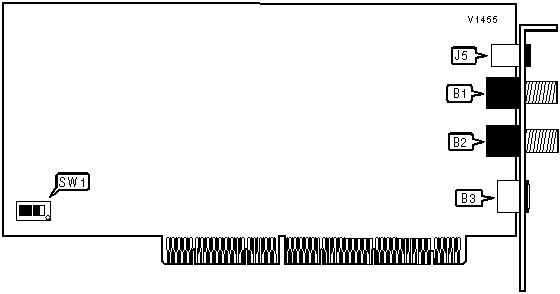

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Composite video output |
B1 |
S-video output |
B3 |
|
Genlock input |
B2 |
Audio out |
J5 |
|
EISA SLOT NUMBER SELECTION | |||||
|
Slot ID |
Hex. Equivalent |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
1 |
0x01h |
Off |
On |
On |
On |
|
2 |
0x02h |
On |
Off |
On |
On |
|
3 |
0x03h |
Off |
Off |
On |
On |
|
4 |
0x04h |
On |
On |
Off |
On |
|
5 |
0x05h |
Off |
On |
Off |
On |
|
6 |
0x06h |
On |
Off |
Off |
On |
|
7 |
0x07h |
Off |
Off |
Off |
On |
|
8 |
0x08h |
On |
On |
On |
Off |
|
9 |
0x09h |
Off |
On |
On |
Off |
|
10 |
0x0Ah |
On |
Off |
On |
Off |
|
11 |
0x0Bh |
Off |
Off |
On |
Off |
|
12 |
0x0Ch |
On |
On |
Off |
Off |
|
13 |
0x0Dh |
Off |
On |
Off |
Off |
|
14 |
0x0Eh |
On |
Off |
Off |
Off |
|
15 |
0x0Fh |
Off |
Off |
Off |
Off |
