OPTIVISION, INC.
MPEG DECODER
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
720 x 576 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
N/A |
|
Maximum Onboard Memory |
N/A |
|

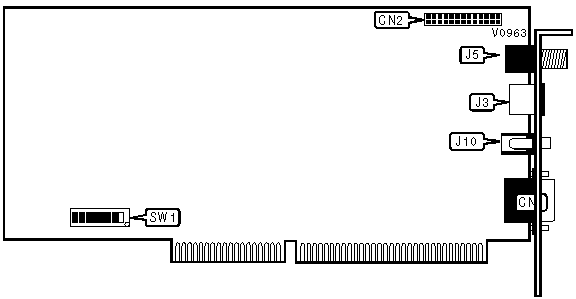

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
Composite output |
J5 |
|
VGA feature connector |
CN2 |
Audio output |
J10 |
|
S-video output |
J3 | ||
|
BASE I/O ADDRESS SELECTION | ||||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
000h |
On |
On |
On |
On |
On |
On |
On |
On |
|
004h |
Off |
On |
On |
On |
On |
On |
On |
On |
|
008h |
On |
Off |
On |
On |
On |
On |
On |
On |
|
00Ch |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
0FCh |
Off |
Off |
Off |
Off |
Off |
Off |
On |
On |
|
100h |
On |
On |
On |
On |
On |
On |
Off |
On |
|
104h |
Off |
On |
On |
On |
On |
On |
Off |
On |
|
208h |
On |
Off |
On |
On |
On |
On |
On |
Off |
|
3F8h |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
3FCh |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
