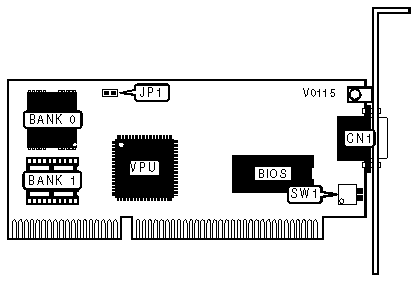

OAK TECHNOLOGY, INC.
OAK-067
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
OTIO67 |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|
CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
VIDEO INTERRUPT SELECTION | ||
|
IRQ 2/9 |
JP1 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
MONITOR TYPE SELECTION | ||
|
Type |
SW1/1 | |
| » |
Color |
Off |
|
Monochrome |
On | |
|
VIDEO INTERFACE CONFIGURATION | |
|
Setting |
SW1/2 |
|
Interlaced |
On |
|
Non-Interlaced |
Off |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(2) 44256 |
None |
|
512KB |
(2) 44256 |
(2) 44256 |
