OAK TECHNOLOGIES, INC.
OAK VGA 16-BIT VERSION
|
Category |
Video |
|
Video Types Supported |
CGA/EGA/Monochrome/VGA |
|
Video Processor |
OTI-037 |
|
Highest Resolution Supported |
800 x 600 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
256KB |
|

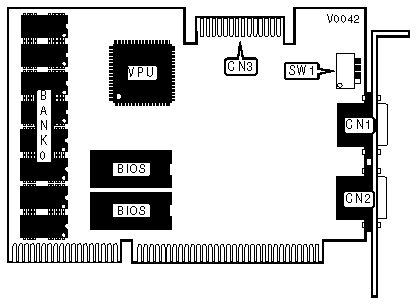

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
Feature connector |
CN3 |
|
9-pin digital video port |
CN2 | ||
|
MONITOR TYPE SELECTION | ||||
|
Type |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
IBM PS/2 or compatible |
N/A |
N/A |
N/A |
On |
|
MDA |
On |
On |
On |
Off |
|
CGA |
Off |
On |
On |
Off |
|
EGA |
On |
Off |
On |
Off |
|
NEC Multisync or compatible |
Off |
Off |
Off |
Off |
|
NEC Mutisync Plus or compatible |
On |
Off |
Off |
Off |
|
NEC Multisync 2A |
Off |
Off |
Off |
Off |
