Card Type	Video card
Video Chip Set	C-Cube/AuraVision
Maximum Video Memory	20MB DRAM
Video Types Supported	VGA
Highest Resolution Supported	720 x 480
Data Bus	32-bit PCI

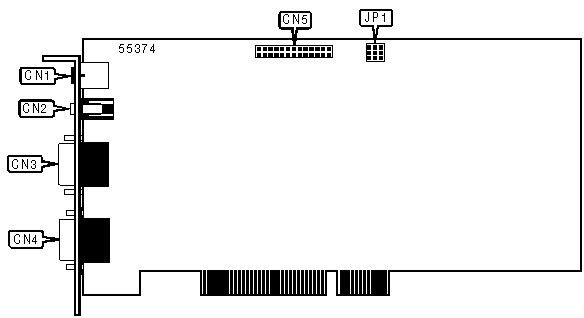

CONNECTIONS
Function	Label	Function	Label
Speaker/Line out	CN1	15-pin analog video port	CN4
Optical S/PDIF connector	CN2	Feature connector	CN5
Multi-cable connector	CN3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	JP1	Open
