Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	1MB
Video Types Supported	VGA, EGA, Monochrome, CGA
Highest Resolution Supported	1024 x 768,
Data Bus	16-bit ISA

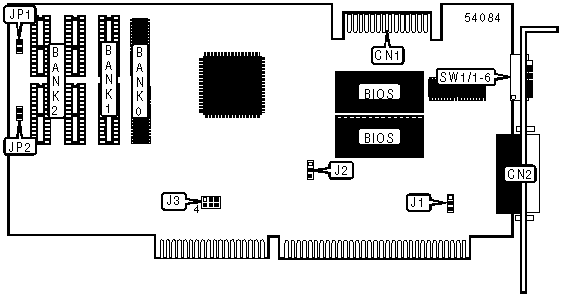

CONNECTIONS
Function	Label	Function	Label
Feature connector	CN1	15-pin analog video port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	SW1/4	On

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
256KB	256KB x 4	None	None
512KB	256KB x 4	256KB x 4	None
1MB	256KB x 4	256KB x 4	256KB x 4

DRAM JUMPER CONFIGURATION
Size	J3	JP1	JP2
256KB	Pins 1 & 2, 4 & 5 closed	Open	Closed
512KB	Pins 1 & 4, 2 & 5 closed	Open	Closed
1MB	Pins 2 & 3, 5 & 6 closed	Closed	Open

SCAN RATE SELECTION
Rate		SW1/3
»	<48KHz	On
	48 - 49Khz	Off

ADDRESS DECODE SPEED SELECTION
Setting		SW1/5
»	Fast address decode	Off
	Slow address decode	On

DATA PATH SELECTION
Setting		SW1/6
»	16-bit data path	Off
	8-bit data path	On

MONITOR COMFIGURATION SELECTION
Setting		SW1/1	SW1/2
»	VGA mode	On	On
	EGA mode	Off	On
	CGA mode	On	Off
	Monochrome/Hercules mode	Off	Off

BUS SIZE SELECTION
Setting		J2
»	Autodetect	Pins 2 & 3 closed
	Standard interface	Pins 1 & 2 closed

IRQ INTERRUPT SELECTION
Setting		J1
»	IRQ9 disabled	Pins 2 & 3 closed
	IRQ9 enabled	Pins 1 & 2 closed
