Card Type	Video MPEG card
Video Chip Set	Unidentified
Highest Resolution Supported	1280 x 1024
Maximum Video Memory	2MB DRAM (location unidentified)
Data Bus	8-bit ISA
Video Types Supported	XVGA

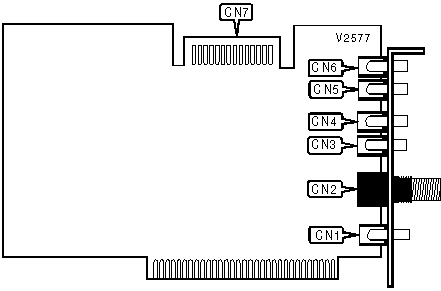

CONNECTIONS
Function	Label	Function	Label
Composite video 2 in	CN1	Audio 2 in	CN5
RF in	CN2	Audio 1 in	CN6
Composite video 1 in	CN3	Port of entry card connector	CN7
S-Video in	CN4

VIDEO MEMORY CONFIGURATION

Note: The size, location and configuration of the DRAM is unidentified.
