Category	Video
Video Types Supported	XVGA
Video Processor	S3, Inc.
Highest Resolution Supported	1280 x 1024
Data Bus Type	PCI local bus
Memory Type	VRAM
Maximum Onboard Memory	2MB

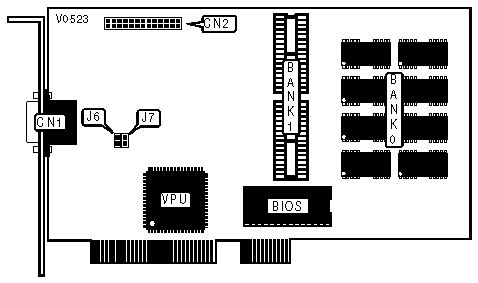

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA Feature connector	CN2

VRAM CLOCK
Speed		J6	J7
»	45MHz	Closed	Closed
	38MHz	Open	Closed
	50MHz	Open	Open
	52MHz	Closed	Open

VIDEO MEMORY CONFIGURATION
Size		Bank 0	Bank 1
»	1MB	(8) 256K x 4 VRAM	NONE
	2MB	(8) 256K x 4 VRAM	(2) 512K x 8 VRAM
