ELSA, INC.
GLORIA-XL
|
Card Type |
Video card |
|
Video Chip Set |
S3 |
|
Maximum Video Memory |
16MB VRAM, 40MB EDO DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1920 x 1200 |
|
Data Bus |
32-bit PCI |
|

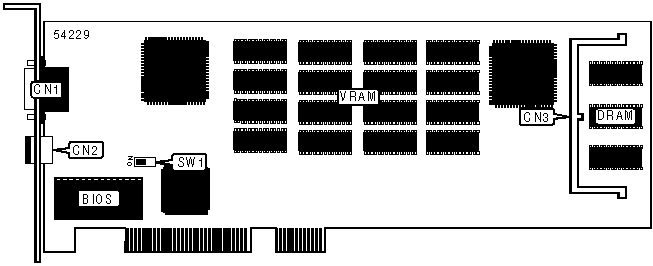

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Memory module socket |
CN3 |
|
3D interface port |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
VGA adapter enabled |
SW1 |
Off |
|
VGA adapter disabled |
SW1 |
On |
|
Maximum Video Memory |
16MB EDO DRAM |
MEMORY MODULE
|
MISCELLANEOUS TECHNICAL NOTES |
|
Chips are located on both sides of the board. ELSA GLORIA-XL has 24MB EDO DRAM onboard. The card will support one 16MB EDO DRAM memory module for a total of 40MB EDO DRAM |
