Category	Video
Video Types Supported	XVGA
Video Processor	90C11
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

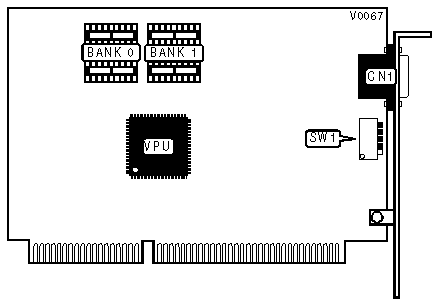

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

MONITOR TYPE SELECTION
Type	SW1/1
PS/2 and other multi-sync monitor timings	Off
Multi-sync one timing	On

BIOS MODE SELECTION
Mode	SW1/2
PS/2 VGA	On
AT VGA	Off

800 X 600 REFRESH RATE SELECTION
Rate	SW1/3	SW1/4
56Hz	On	On
60Hz	On	Off
72Hz	Off	On
56Hz	Off	Off

1024 X 768 SELECTION
Mode	SW1/5
Interlaced	On
Non-interlaced	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(2) 44256	NONE
512KB	(2) 44256	(2) 44256
