COLOR DESIGNER A3 (VER. 2)

CARDEXPERT TECHNOLOGY, INC.

Card Type

Video card

Chip Set

Cirrus Logic

Maximum Onboard Memory

2MB

Video Types Supported

VGA, XVGA

Highest Resolution Supported

1280 x 1024

Data Bus

32-bit VESA Local Bus

Card Size

Full-length, full-height card

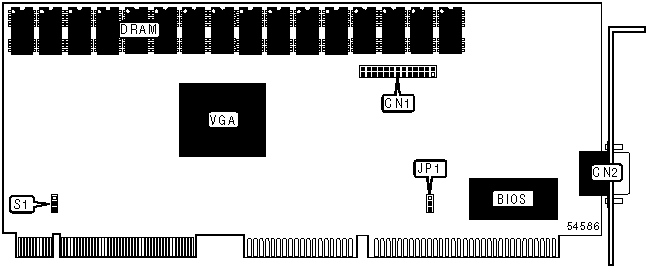

CONNECTIONS

Function

Label

Function

Label

VGA feature connector

CN1

VGA port

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»
IRQ2 disabled

JP1

Pins 2 & 3 closed

IRQ2 enabled

JP1

Pins 1 & 2 closed

»
486 system of CPU clock at or above 33Mhz

S1

Pins 1 & 2 closed

486 system of CPU clock under 33Mhz

S1

Pins 2 & 3 closed

Card Type	Video card
Chip Set	Cirrus Logic
Maximum Onboard Memory	2MB
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit VESA Local Bus
Card Size	Full-length, full-height card

CONNECTIONS
Function	Label	Function	Label
VGA feature connector	CN1	VGA port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IRQ2 disabled	JP1	Pins 2 & 3 closed
	IRQ2 enabled	JP1	Pins 1 & 2 closed
»	486 system of CPU clock at or above 33Mhz	S1	Pins 1 & 2 closed
	486 system of CPU clock under 33Mhz	S1	Pins 2 & 3 closed
