Card Type	Video card
Video Chip Set	Alliance
Maximum Video Memory	4MB DRAM
Video Types Supported	VGA, SVGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

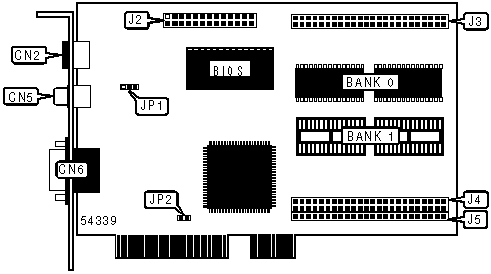

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN6	THP interface	J3
RCA Video output	CN5	THP interface	J4
S-Video connector	CN2	THP interface	J5
Feature connector	J2

USER CONFIGURABLE SETTINGS
Function	Label	Position
NTSC TV System	JP1	Pins 1&2 closed
PAL TV System	JP1	Pins 2&3 closed
PCI INT A ON	JP2	Closed
PCI INT A OFF	JP2	Open
TV Only	JP3	Pins 1&2, 3&4, 5&6 closed
TV and Monitor or Monitor Only	JP3	Open

MISCELLANEOUS TECHNICAL NOTES

The WG-8200/TV board comes with 1MB DRAM onboard; it can be upgraded to 2MB. To upgrade to 3MB or 4MB the memory module must be used.

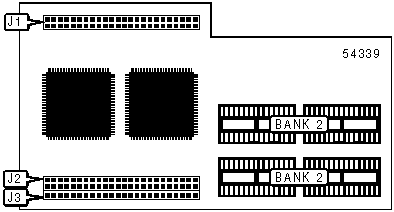

MEMORY MODULE CONNECTIONS
Function	Label	Function	Label
THP interface	J1	THP interface	J3
THP interface	J2
