DIAMOND FLOWER, INC.
WG-1510P (REV. A+), WG-1510P/V (REV. A+)
|
Card Type |
Video card |
|
Video Chip Set |
SiS |
|
Maximum Video Memory |
2MB DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus |
32-bit PCI |
|

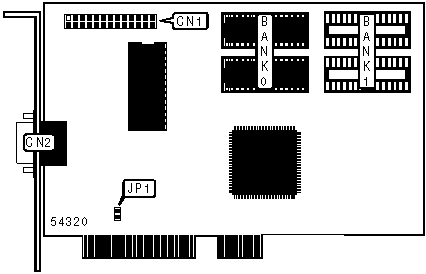

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Feature connector |
CN1 |
15-pin analog video port |
CN2 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
PCI interrupt enabled |
JP1 |
Closed |
|
PCI interrupt disabled |
JP1 |
Open |
|
VIDEO MEMORY CONFIGURATION (DRAM) | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 512KB x 16KB |
None |
|
2MB |
(2) 512KB x 16KB |
(2) 512KB x 16KB |
